“Nameraka”stepTM
Recently mixed mounting between parts with different mounting difficulties has been rising; the requests for half-etching have increased. It has a half-etching specification to reduce “smoothly” the edge of the half boundary.

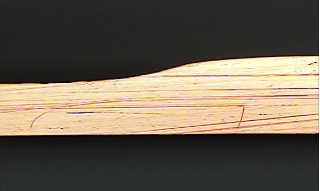

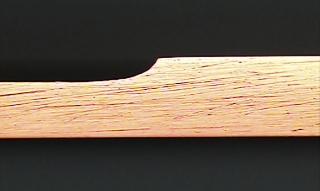

Cross-sectional shape of “Nameraka”step
-
-
Normal Half
-
-
“Nameraka”step

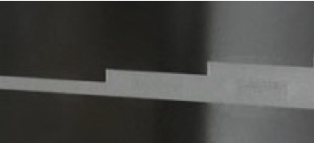

Verify the Effects of “Nameraka”step
- The scraping performance improvement was confirmed after evaluating its performance at the 0.06mm half-step difference compared to the normal half.

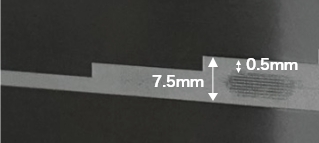

- If the half area has the 7.5 mm or more width and keeps away 0.5 mm or more from the edge, it is possible to be printed without scraping.
- The recent increase in reverse half is also expected to reduce scraping residue and damage to the squeegee.
-
Normal Half
-
-
“Nameraka”step
-
Print direction
